ArxSilex MapTools

ArxSilex MapTools Converter

Choose local map, POI or elevation data, define an area and export exactly the extract you need.

ArxSilex MapTools Converter

Portable desktop converter for map, POI and elevation data.

Sources

Open map, POI and elevation files separately, together or from security-checked ZIP files. Multiple .map and .poi sources are combined geographically; POI-only and elevation-only data can also be clipped.

Formats and limits: OSM-PBF · OSM-XML (.osm/.osm.gz/.osm.bz2) · Mapsforge .map/.poi · HGT · GeoTIFF · ASC · DTED · XYZ/CSV · LAS/LAZ/COPC. Formats and limits

Area and content

Import GPX tracks and routes or MapTools ASMAPS projects as visible references. Use closed polygons or the combined bounding box directly as the export area; rectangles and circles remain available and can be combined. GeoJSON, KML/KMZ and GeoPackage are also imported solely as reference geometry, not as output formats.

Export

Create Mapsforge .map v4/v5, one merged .poi v3/v4, a clipped OSM PBF or elevation data as GeoTIFF, ASC, HGT or DTED. Map, POI and elevation data can be bundled directly as a MapTools package with a verified manifest.

MapTools Converter 1.11.0

Version 1.11.0 reads the CRS from GeoTIFF metadata and preserves the original projection while mosaicking and cropping. Embedded EPSG coordinate systems are resolved with the locally bundled PROJ runtime instead of being inferred from file names. Image and elevation tiles retain their CRS, pixel grid, GeoKeys and NoData value in GeoTIFF exports. Incompatible tile grids are rejected instead of being silently reprojected or resampled.

Interface examples

The complete workflow

Five map, POI and elevation sources are combined, an imported GPX track defines the required corridor, and the Converter turns it into a verified MapTools package.

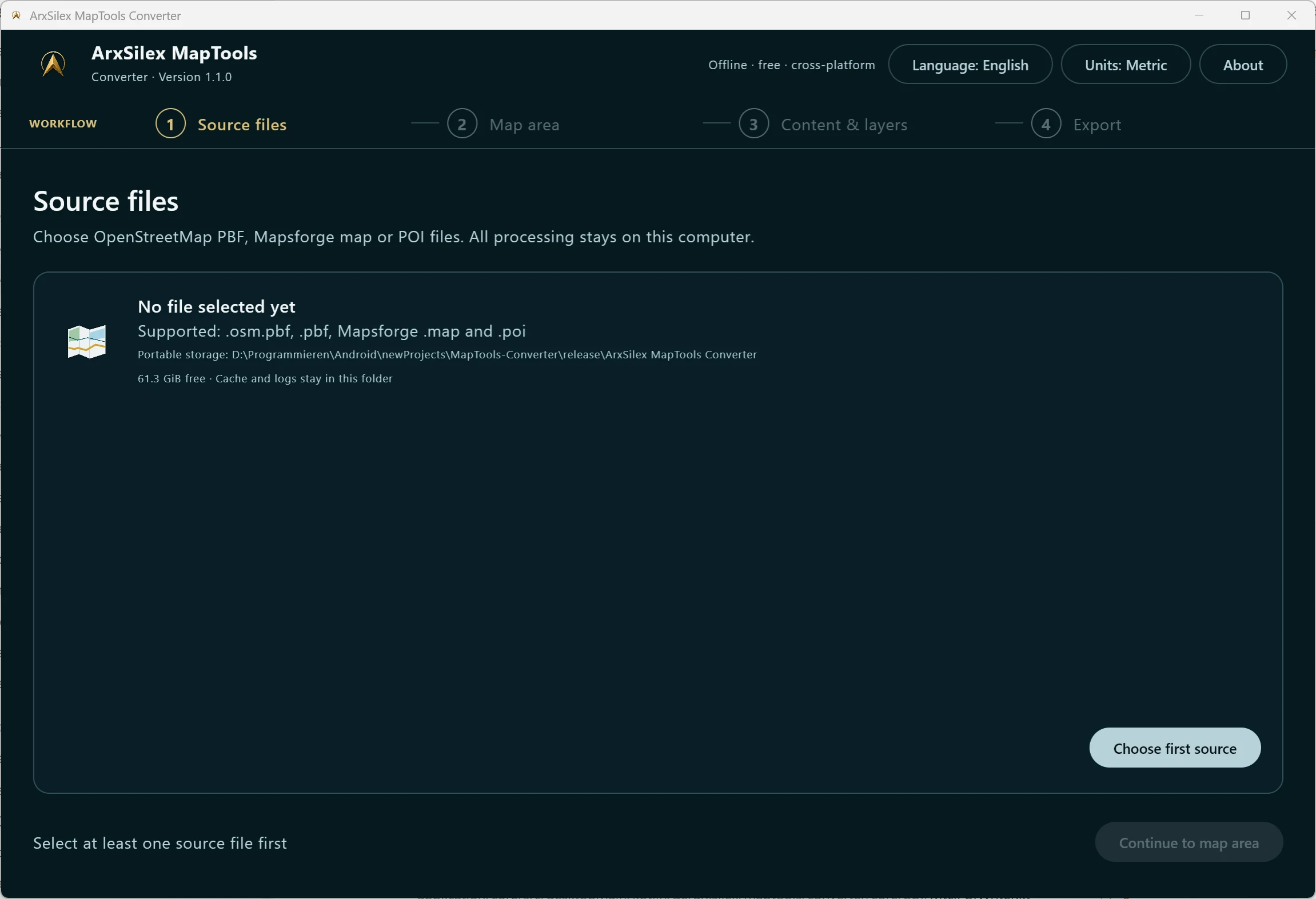

1 · Choose source files

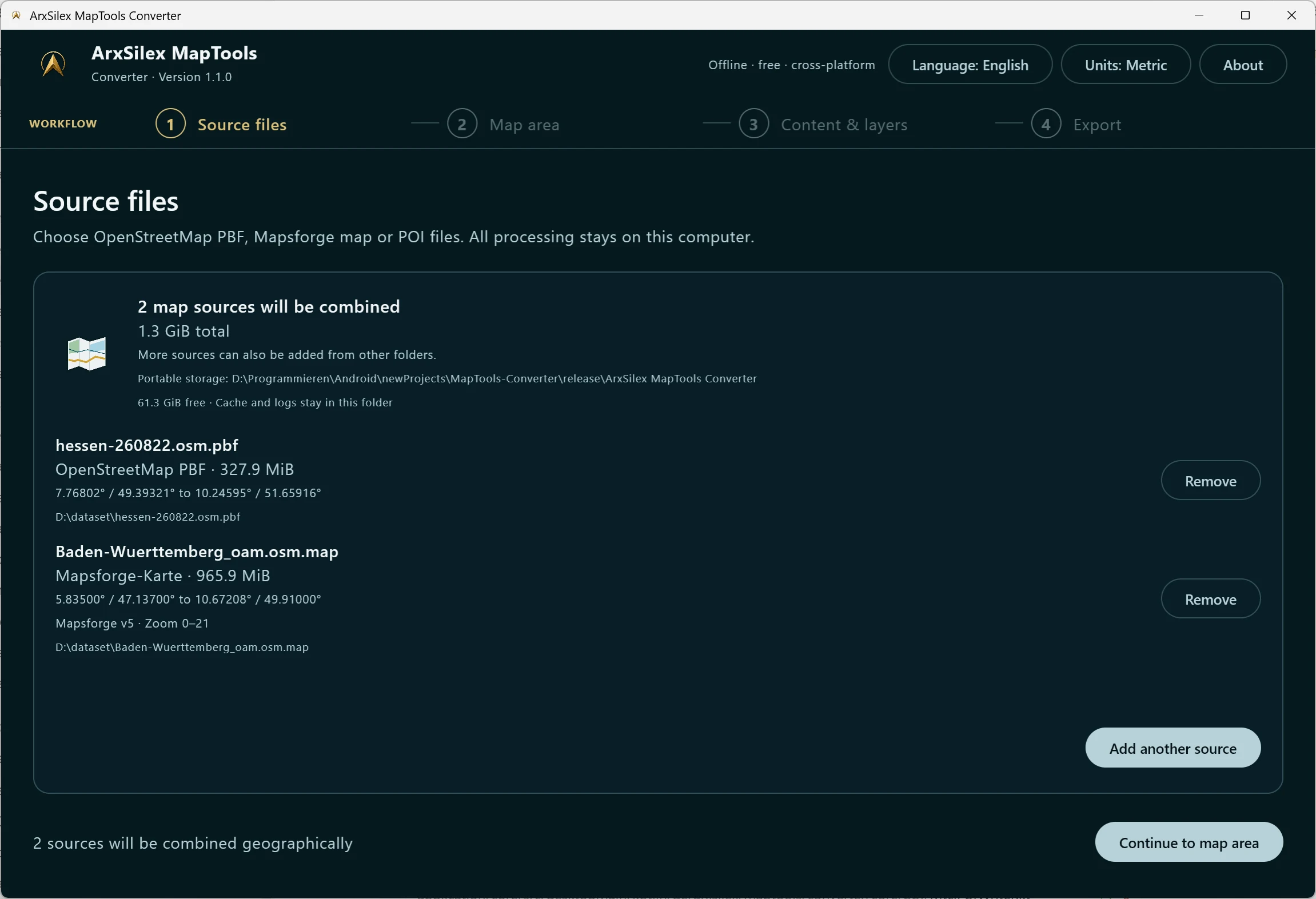

2 · Combine sources geographically
3 · Review the combined preview

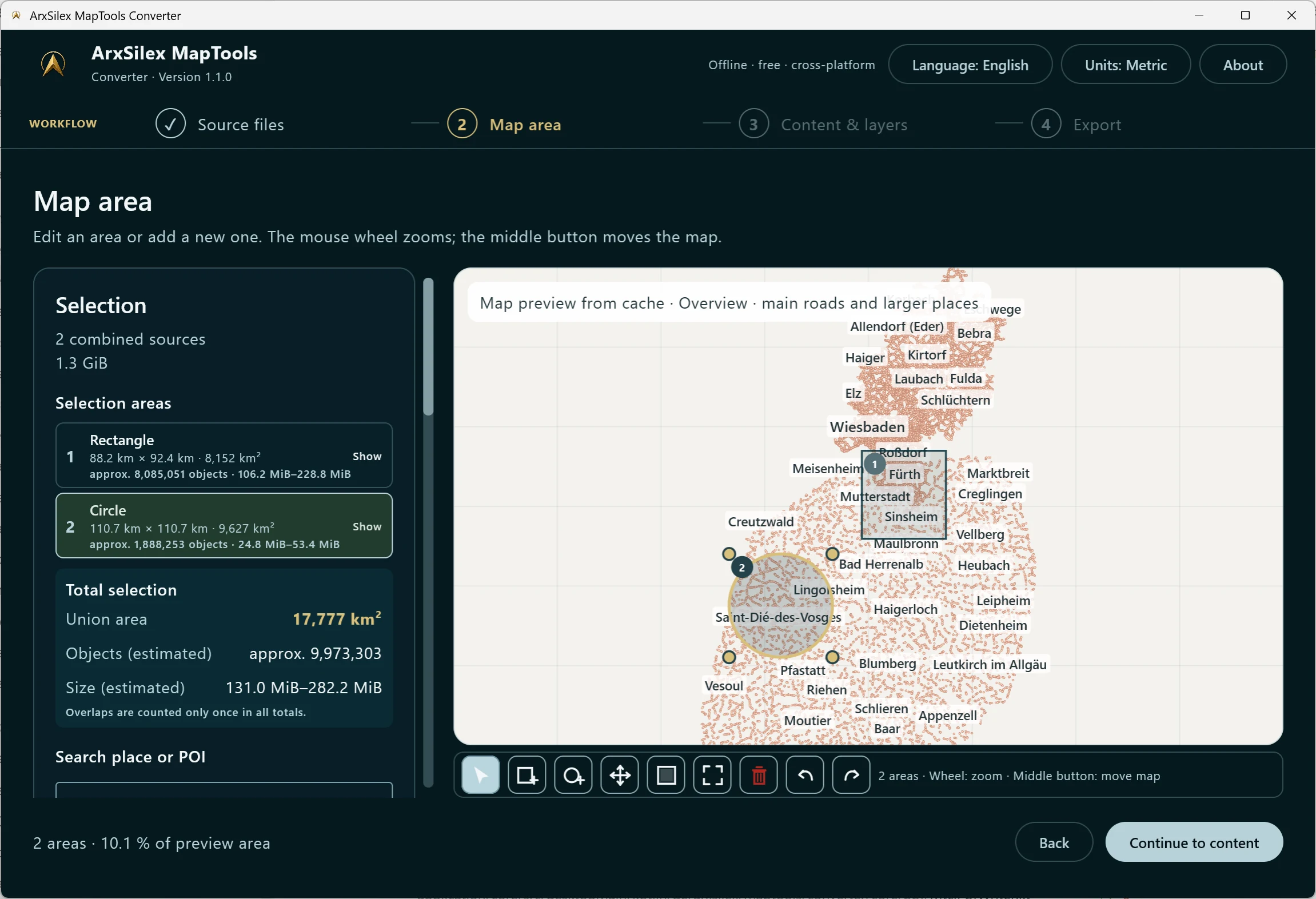

4 · Select the required route corridor

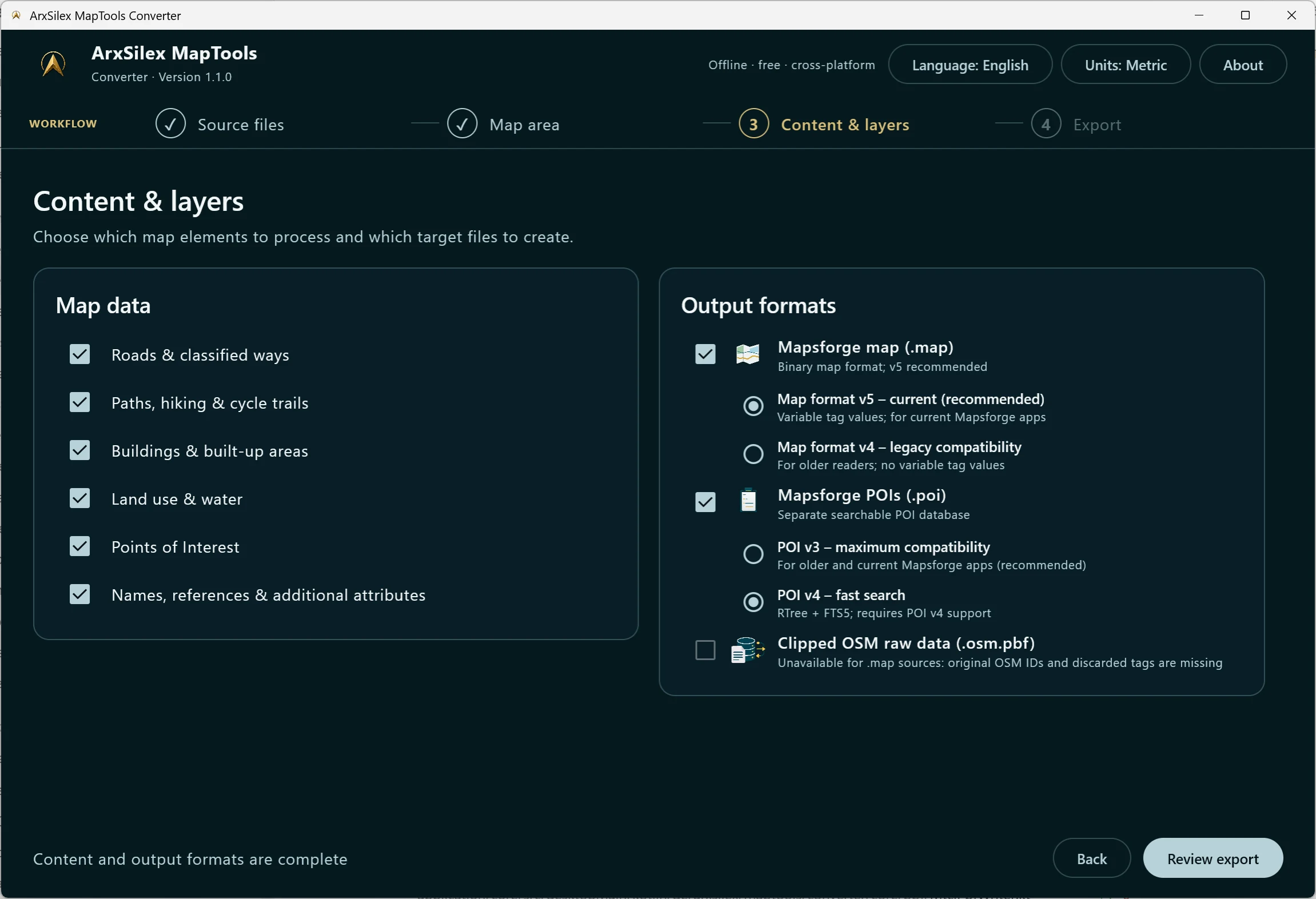

5 · Choose content and formats

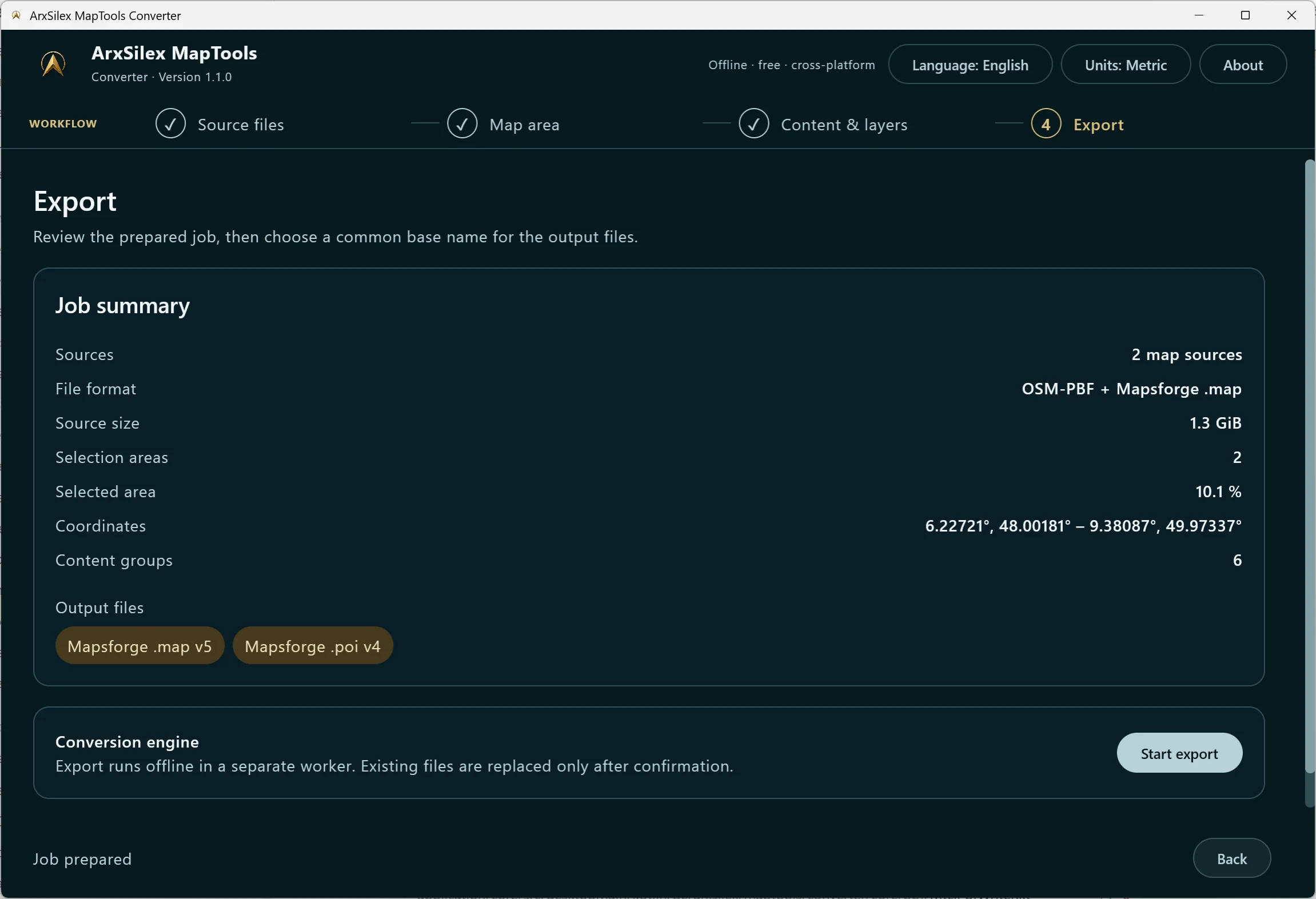

6 · Review the export job

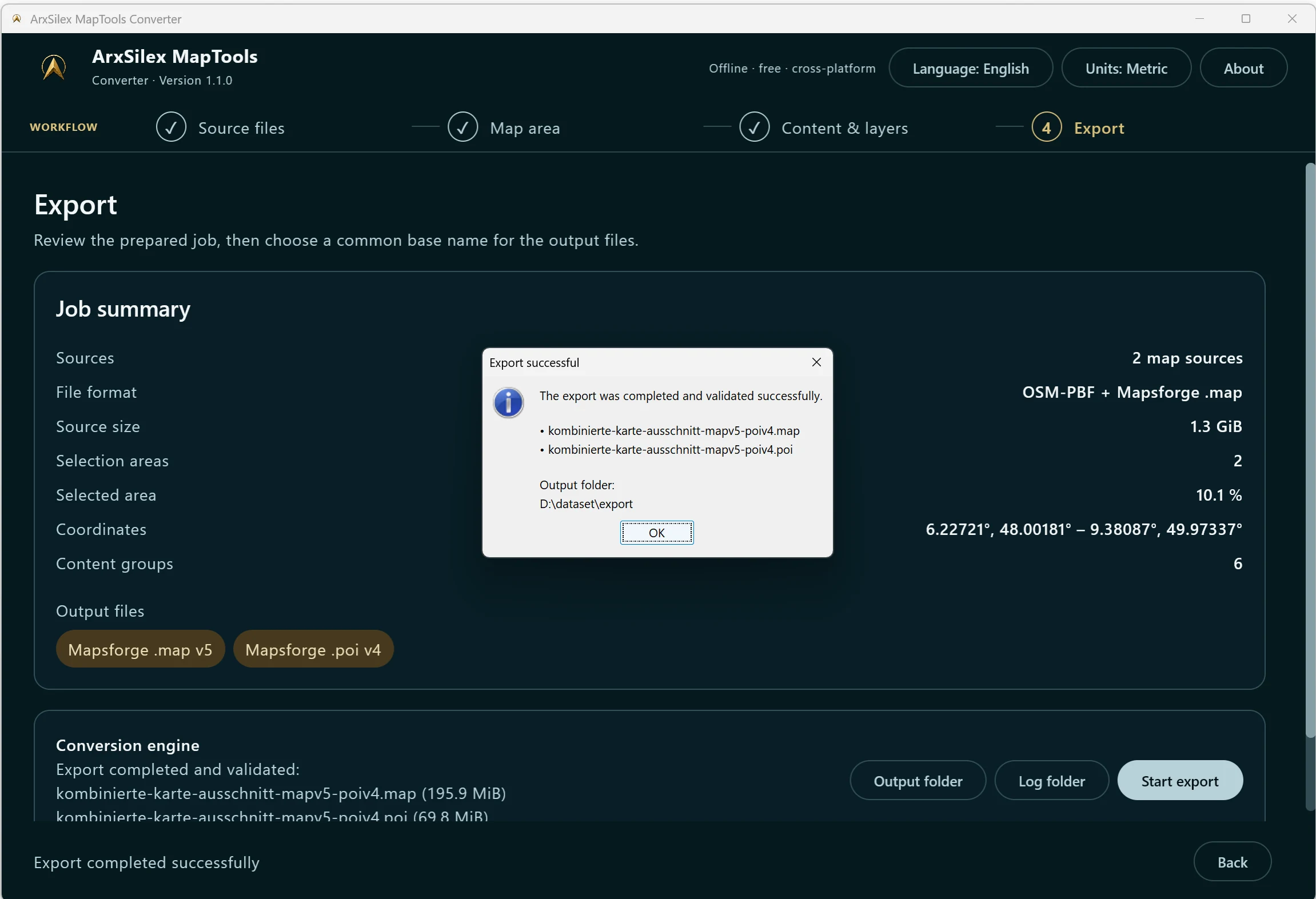

7 · Complete the validated export

Example: file size of a selected area

In this example, 3.20 GB of source data yields 15.7 MB of map, POI and elevation data for a selected 297 km² corridor. File size depends on the chosen area and exported content. The smaller result comes from selecting a geographic subset, rather than general data compression.

8 · Source files: 3.20 GB
9 · Exported area: 15.7 MB

Import the package directly into MapTools

The generated ZIP package is checked on the phone. Map, POIs and elevation data can be selected together, imported locally and used offline straight away.

1 · Open the Map Browser

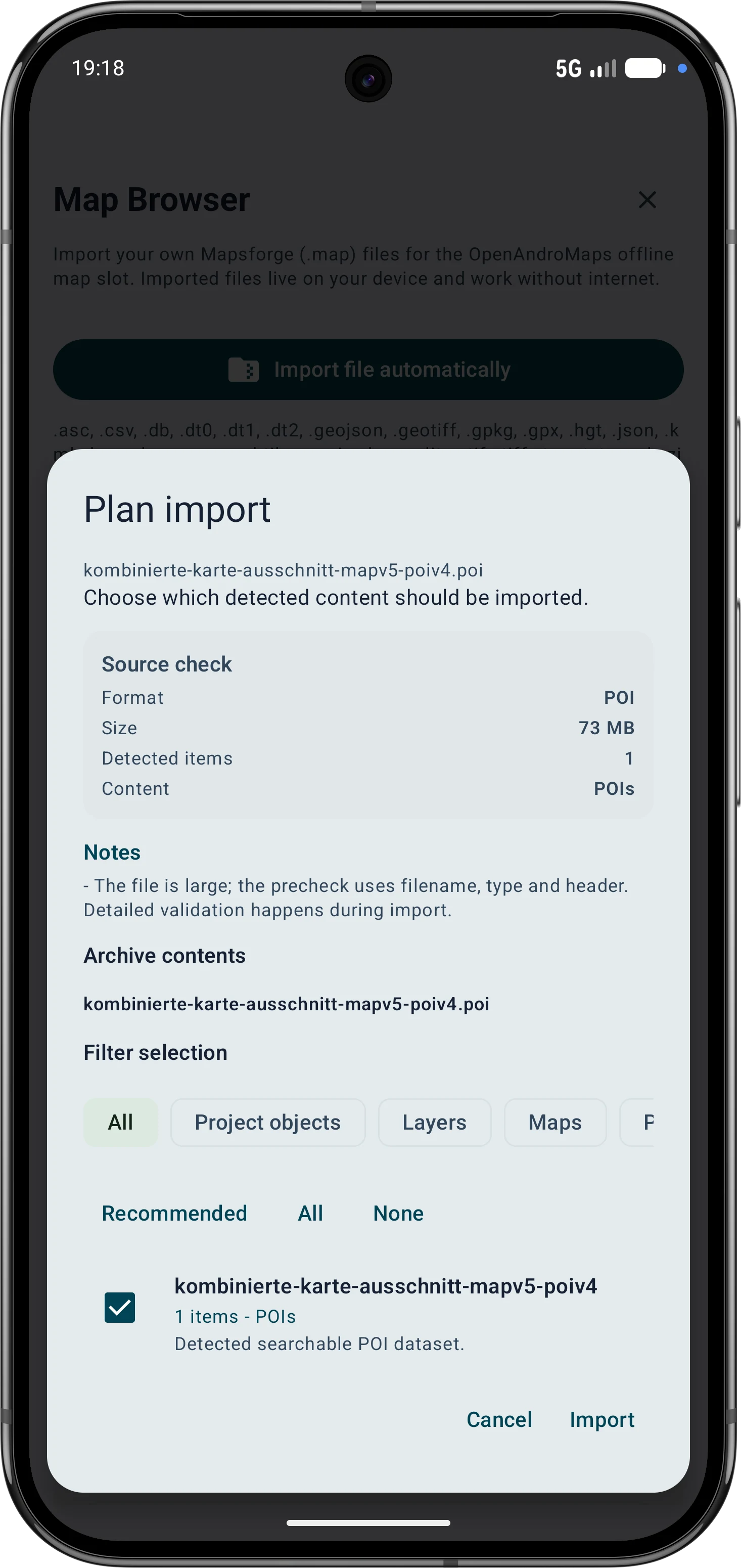

2 · Select the ZIP package
3 · Review package contents
4 · Import all content together

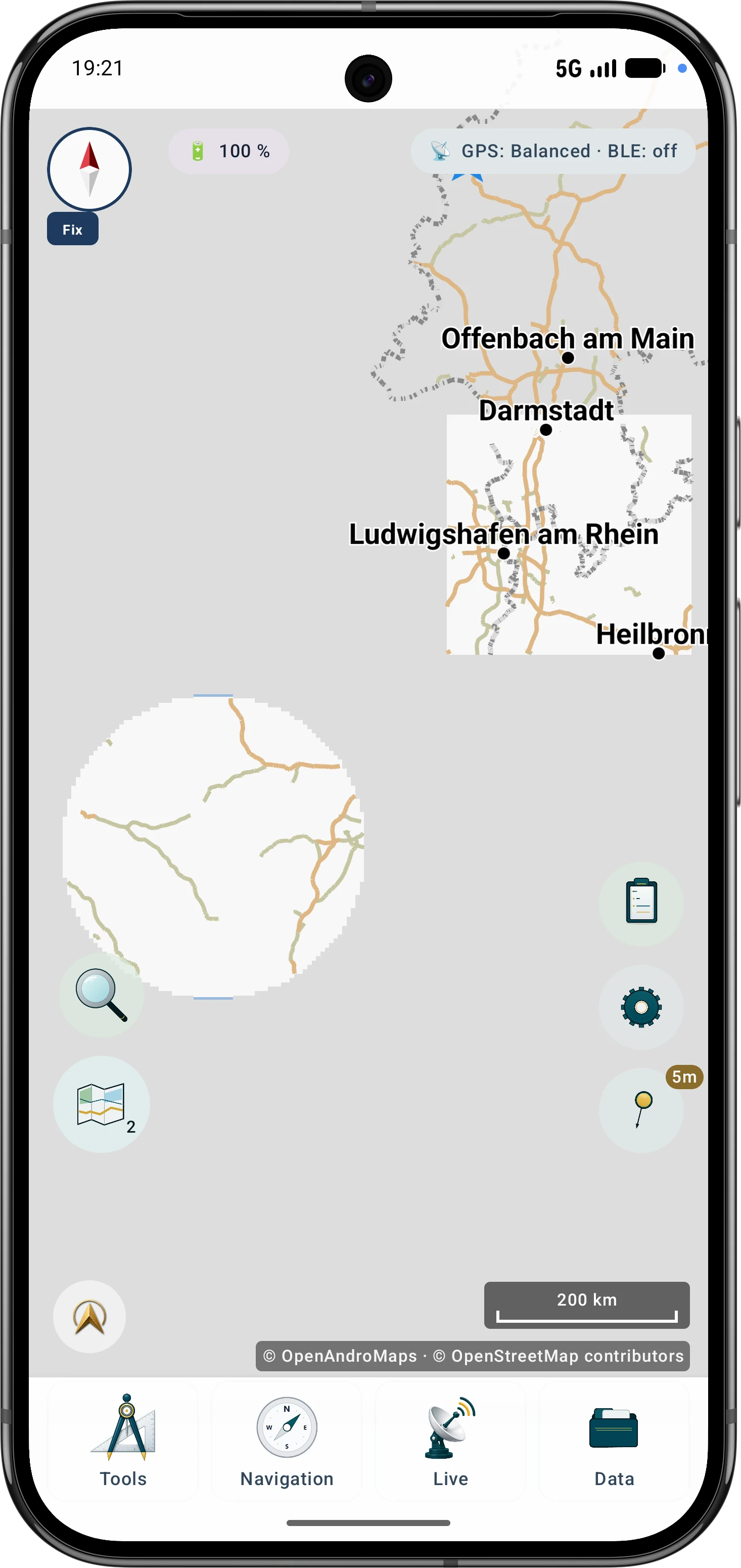

5 · Use the area offline

Local and portable

Local and portable

Processing takes place on this computer. Cache, logs and temporary work data remain beside the application; Java and Gradle are not required for the portable package.

Open Source

GPL-3.0-only

Version 1.11.0 provides the interface in the same 17 languages as the Android app, switchable metric or imperial units, and portable settings. The Converter remains open as a separate GPL-3.0-only project; that licence does not apply to the Android app.

Downloads

Downloads

Each published Converter release provides a portable Windows x64 package, a portable Linux x64 package and a cross-platform source archive.

Portable Windows x64

MapTools Converter 1.11.0 · 30.09.2026

102.0 MiB

Portable Windows x64

SHA-256b19e517d8b9a388e2250959ae33d5513e7158370d33ed378d13ad8a2d25f84b1

Portable Linux x64

MapTools Converter 1.11.0 · 30.09.2026

112.0 MiB

Portable Linux x64

SHA-256cca3e1ee26ef5ac4d47dc8b43c6ad326aee4529e1d1986c04a03fceb0c1117dd

Source archive

MapTools Converter 1.11.0 · 30.09.2026

37.5 MiB

Source archive

SHA-2569a7bcdf90de024a034aef76861f5a13147eded2cb27960e4151db57febbbb1cf

Release 1.11.0 was built and tested for Windows x64 and Linux x64. The OSV reports published on 30.09.2026 contain no known unresolved vulnerabilities.

Note: The Windows files are not yet Authenticode-signed. Windows may therefore show a SmartScreen warning. Verify the SHA-256 checksum before running them.

Technical release evidence
